For those interested, a quick photo drop of current projects

GrimGreaserGrimGreaser Posts: 786Senior Contributor
Here's a couple quick pictures of my current projects:




2820 x 2268 - 2M
2216 x 2228 - 1M

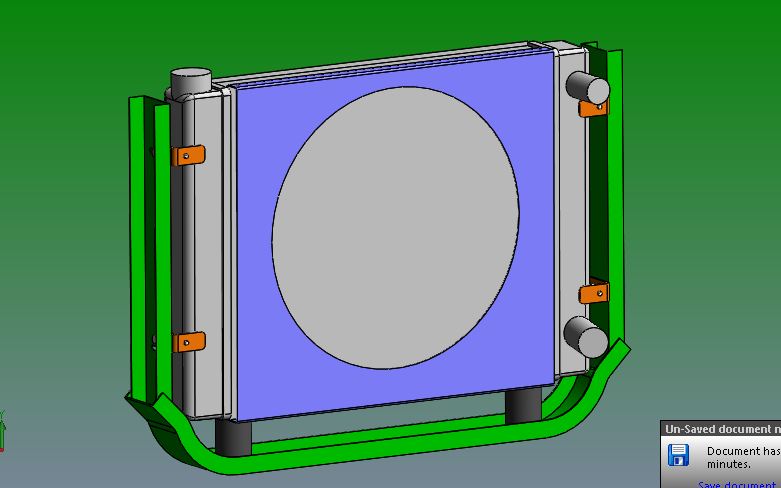

2-PASS CROSSFLOW.JPG
781 x 488 - 46K
2785 x 2240 - 1M

Comments

  • jjbubaboyjjbubaboy Posts: 813Senior Contributor
    Looking awesome! Great job!
    Jeff
  • ValVal Posts: 758Member
    Very Nice!
  • hudsonsplasher1hudsonsplasher1 Posts: 726Senior Contributor
    Very nice work.
  • triman62triman62 Posts: 214Member

    Some very interesting projects, nice work!
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor

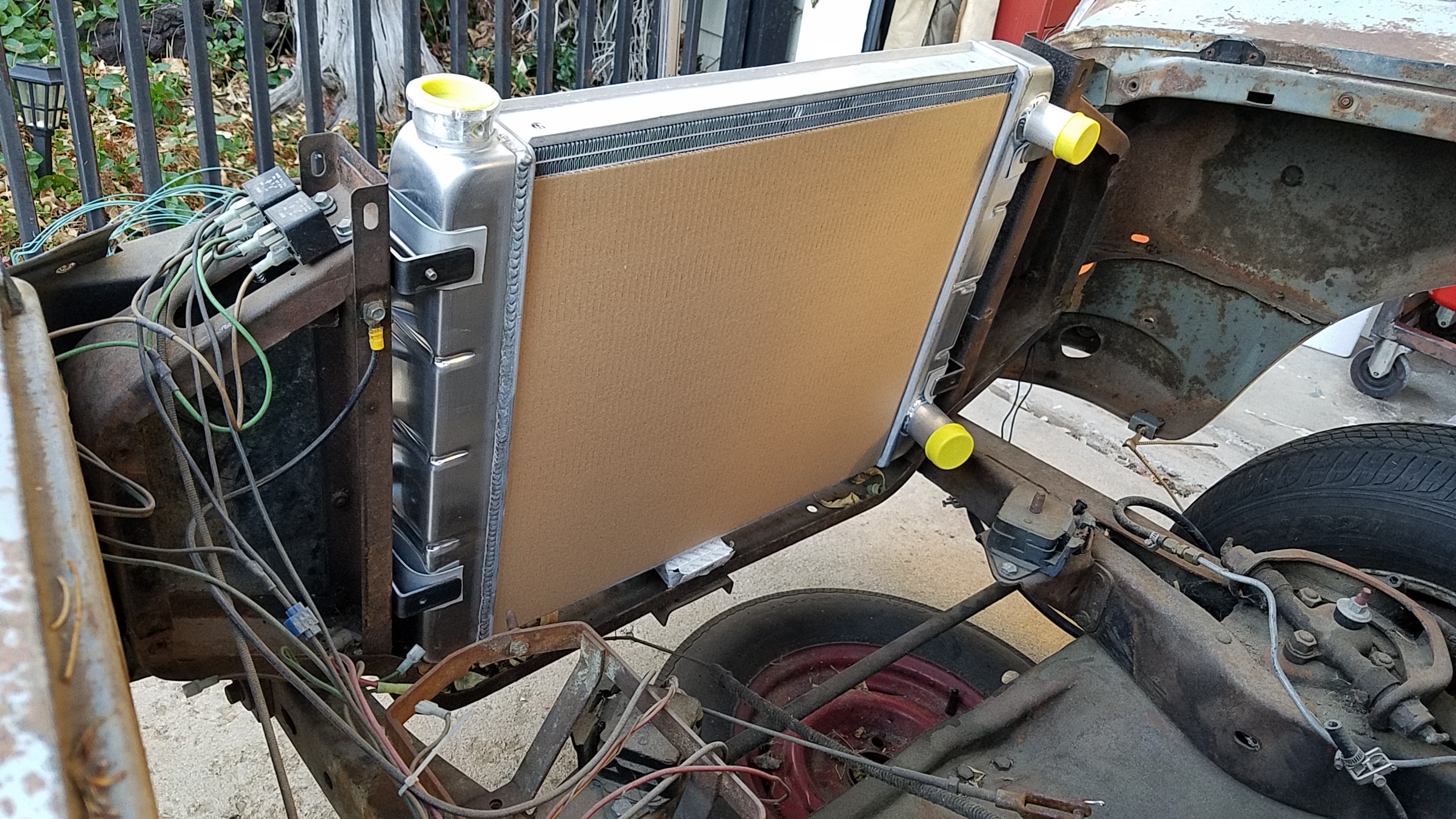

    "Meat-space" 80% radiator install. There will be a custom chevy adapter for a swivel water neck to accomodate the passenger side inlet.
    2560 x 1440 - 2M
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor

    Spaced 1-1/4" to make room for fittings.
  • bluenashbluenash Posts: 34Member

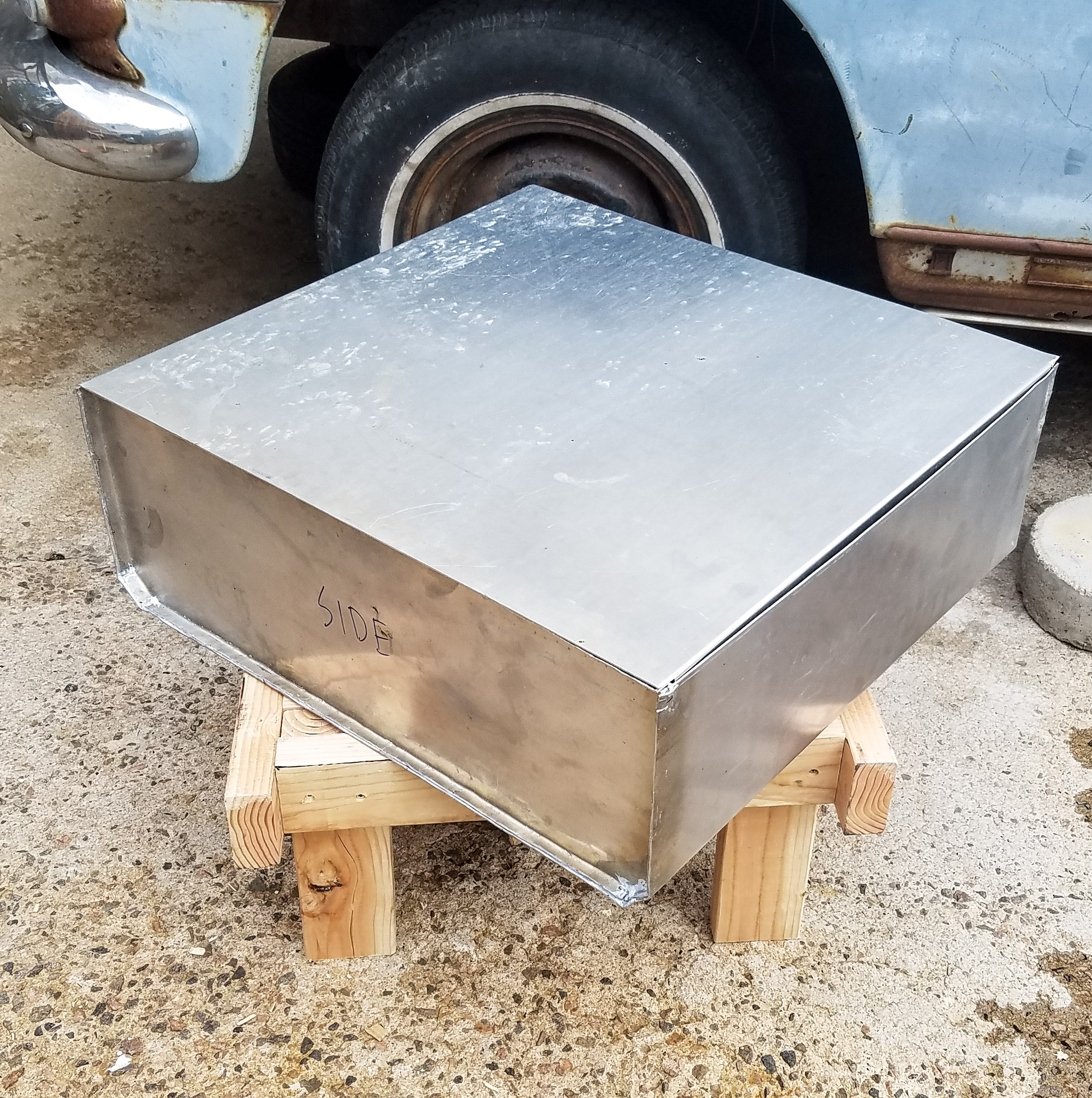

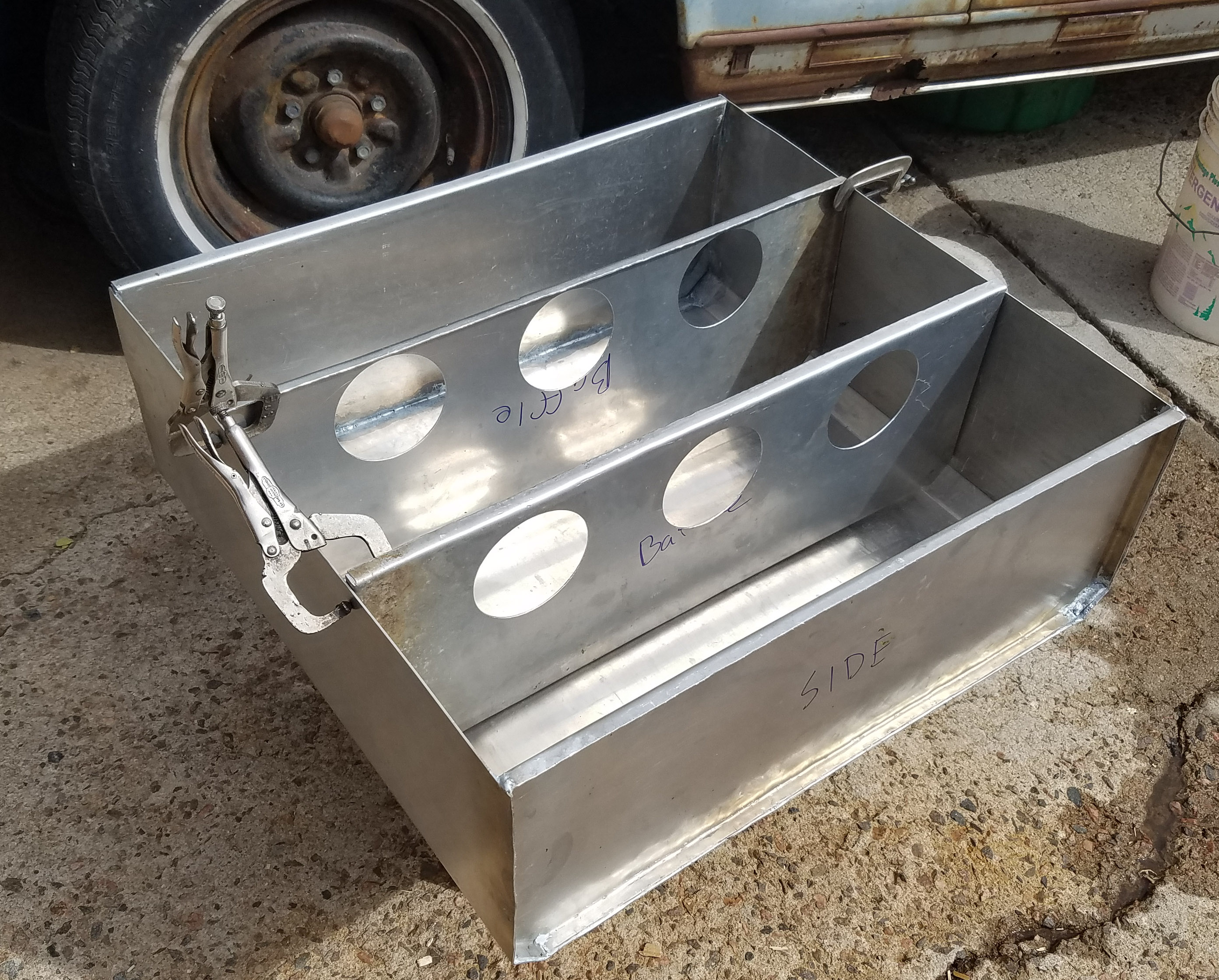

    Love the tank. Quite a job.
  • 33kc198933kc1989 Posts: 369Senior Contributor
    Nice work.
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    Pretty much ready to drive around... Get a coat of paint on the fenders, and give the state of CO their vig and I'll be good to go...


  • KdancyKdancy Posts: 2,361Senior Contributor
    Grim, did you get the tach you were working on completed ? Also, tell us about the fan pulley, are you using the stock crank dampener pulley with it ? What is the advantage on that style radiator ?
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    edited May 2018
    Tach and gauges are nearly complete, have some circuit board and enclosure details to iterate and finalize.  I have a later model GM dampener with a short-water pump style crank pulley, and that water pump pulley is for a Ford Racing Short Water pump, but I had to swap out the hub for the proper bolt pattern. Radiator is a Speedway universal dual path cross flow unit, 26" wide.  https://www.speedwaymotors.com/Speedway-Double-Pass-Aluminum-Radiator-Chevy,23864.html

  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    Some quick numbers from my cooling system:

    180° thermostat, 7 psi rad. Cap
    Rad. Inlet ~170°
    Rad. Outlet ~130°
    Measured w/ K-type thermocouple on radiator surface

    @ idle (after quick trip to gas station and around neighbourhood) with just stock fan as seen in picture.
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor

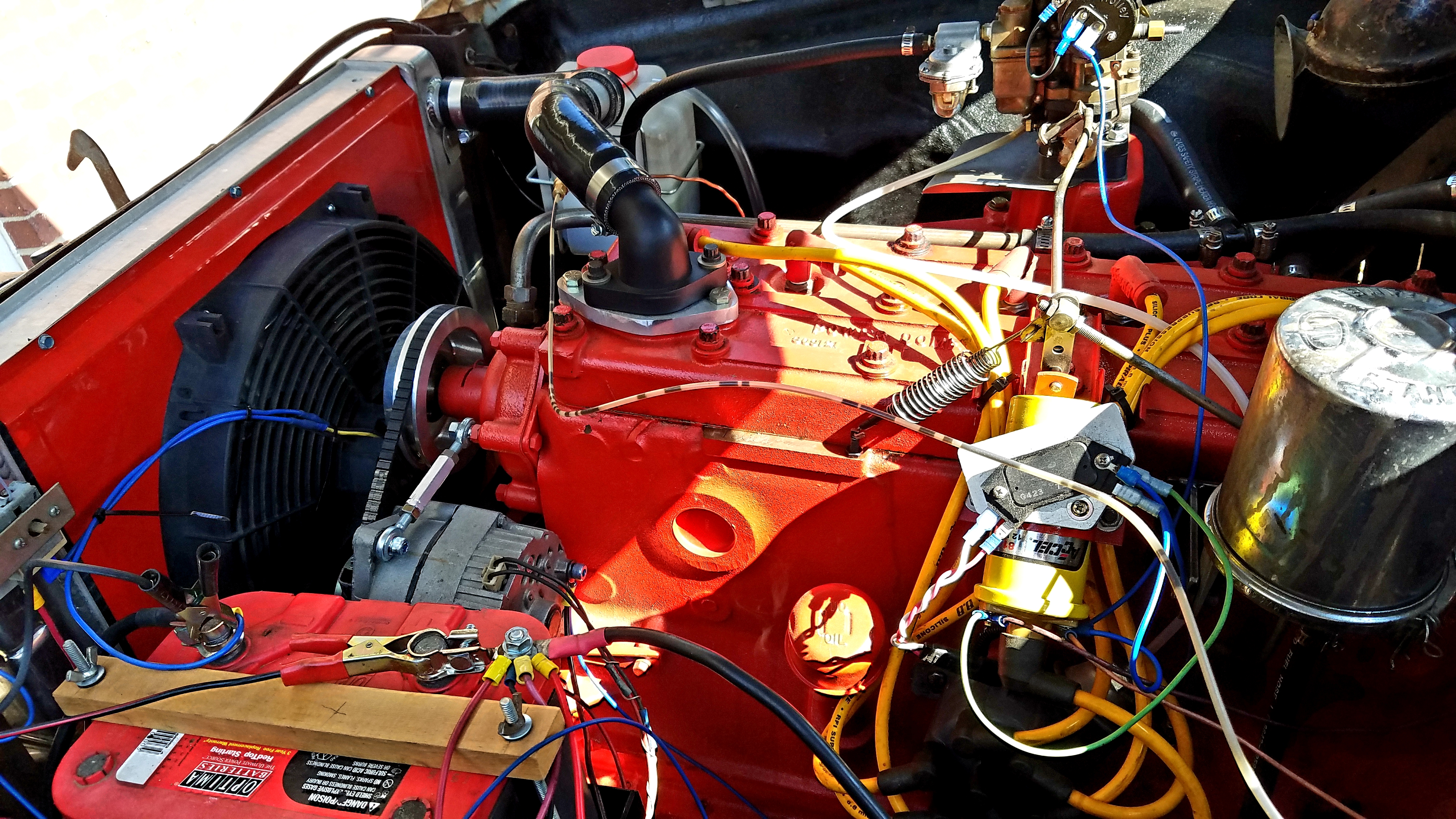

    Little farther along... Electric cooling fan and shroud:

    4032 x 2268 - 6M
  • bent metalbent metal Posts: 1,554Senior Contributor
    Good stuff. :)
  • TwinSuperchargedTwinSupercharged Posts: 23Expert Adviser
    Interesting that I see most Hudson's with the coil mounted pointing down. Most mfg MSD, Pertronix recommend pointing it up to insure the oil is covering the internals. Any issues??
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    No problems for me so far.
  • JasonNCJasonNC Posts: 869Expert Adviser
    Grim,
    Why the different air filter on the carb? Is that a standard carb? What kind of filter is that? Looks like it makes it easier to work on the engine without the standard air filter.
  • GlowplugGlowplug Posts: 1,723Expert Adviser
    What material did you use to construct your radiator shroud?
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    The air filter is one of those universal K&N types that I found to fit a Rochester 4GC I have, but it fits great on the filter adapter on the Carter WGD. Much better than the oil bath filter I had.

    The shroud is made out of some sheet steel I had. I would of rather used aluminum, but it turned out pretty good and looks pretty slick painted red.
  • JasonNCJasonNC Posts: 869Expert Adviser
    The air filter is one of those universal K&N types that I found to fit a Rochester 4GC I have, but it fits great on the filter adapter on the Carter WGD. Much better than the oil bath filter I had.

    The shroud is made out of some sheet steel I had. I would of rather used aluminum, but it turned out pretty good and looks pretty slick painted red.
    What is the number on the K & N air filter?  Better yet, what are the dimensions?
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    Not a K&N... Airaid or Spectre...  I will have to look it up.
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor
    This one one I beleive...
    https://www.spectreperformance.com/mobile/product.aspx?prod=8168
    There are other colors.  Mine is clamped on the base of one of those 2bbl universal 4" filters.
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor

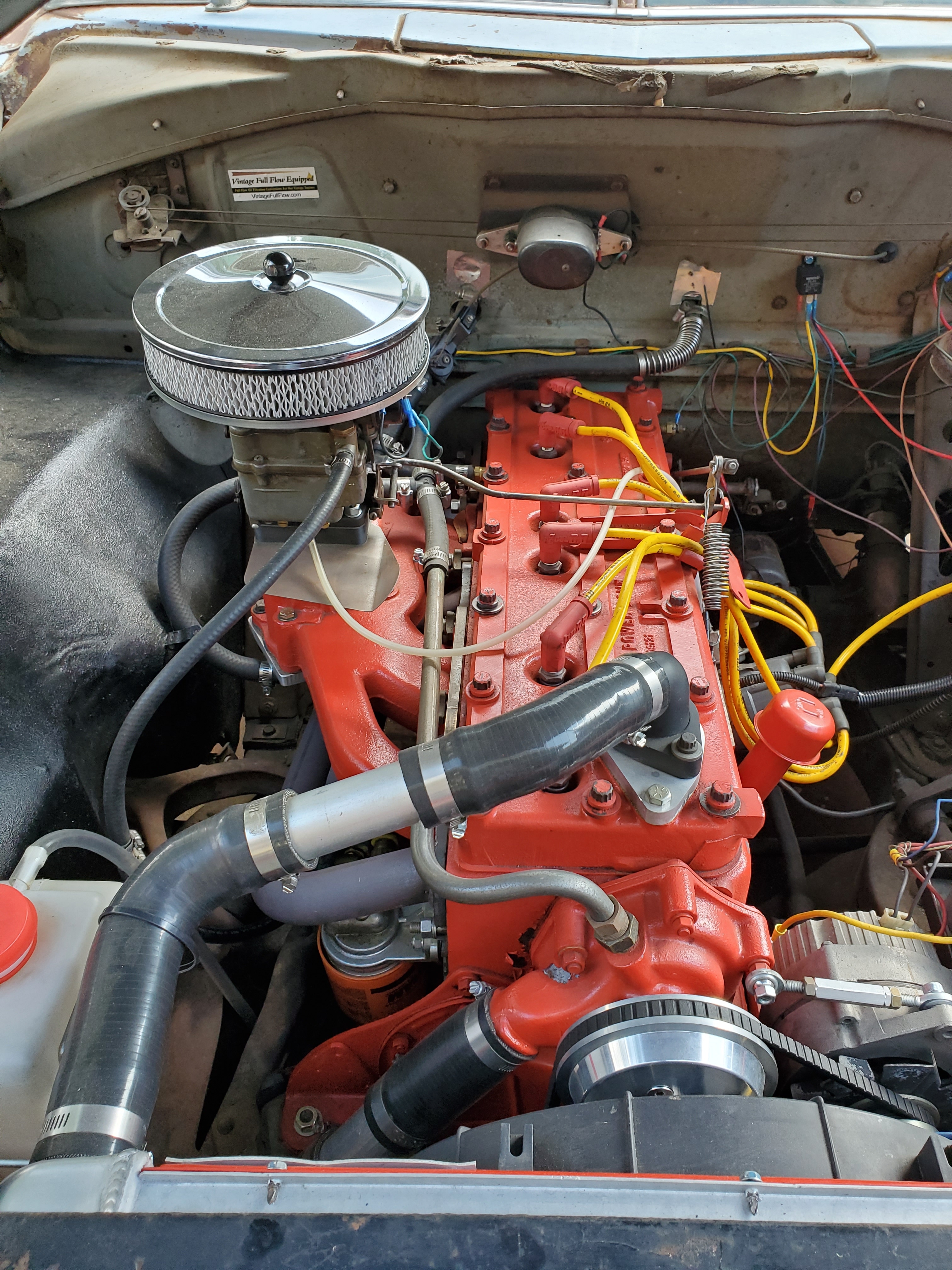

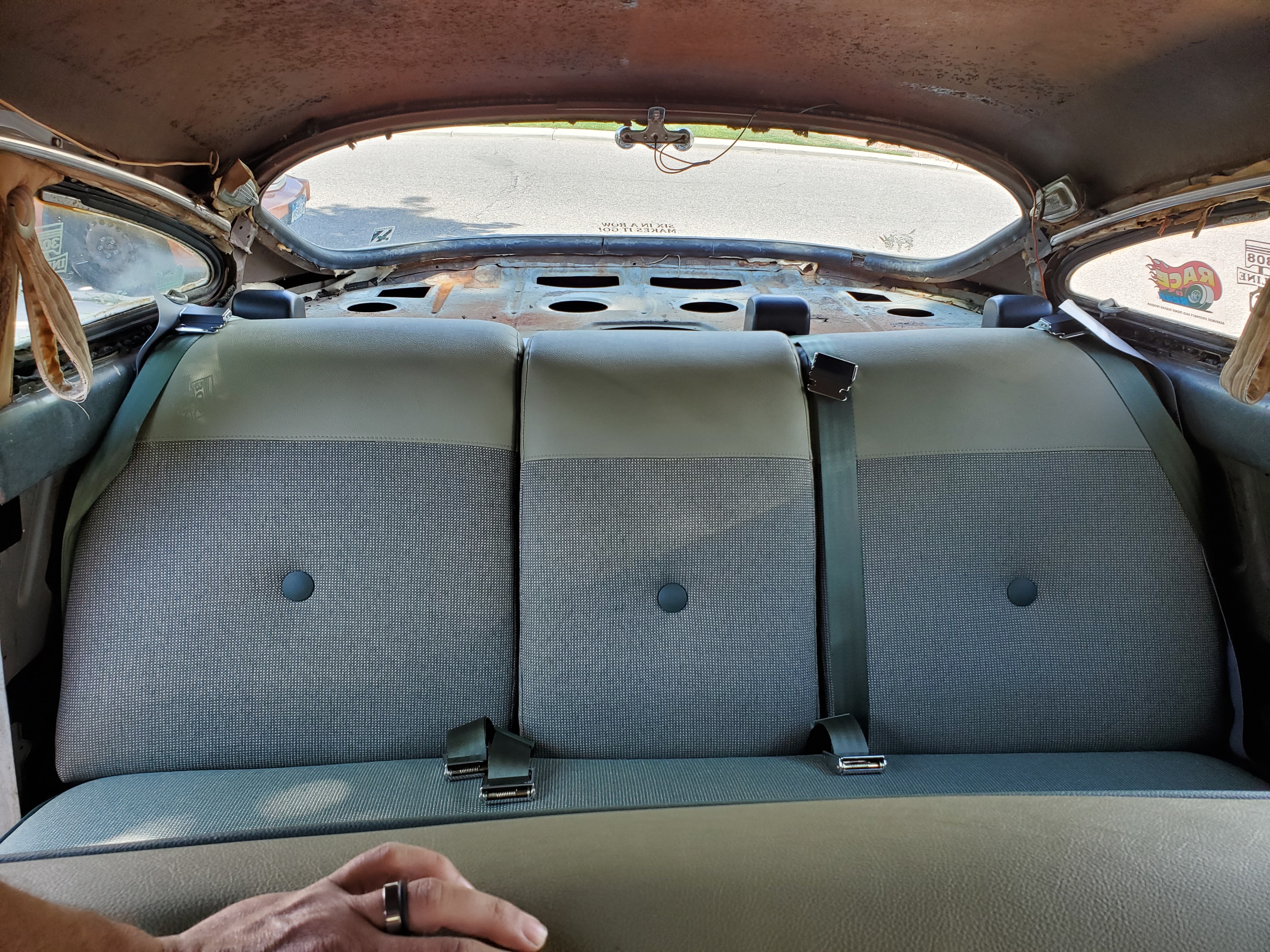

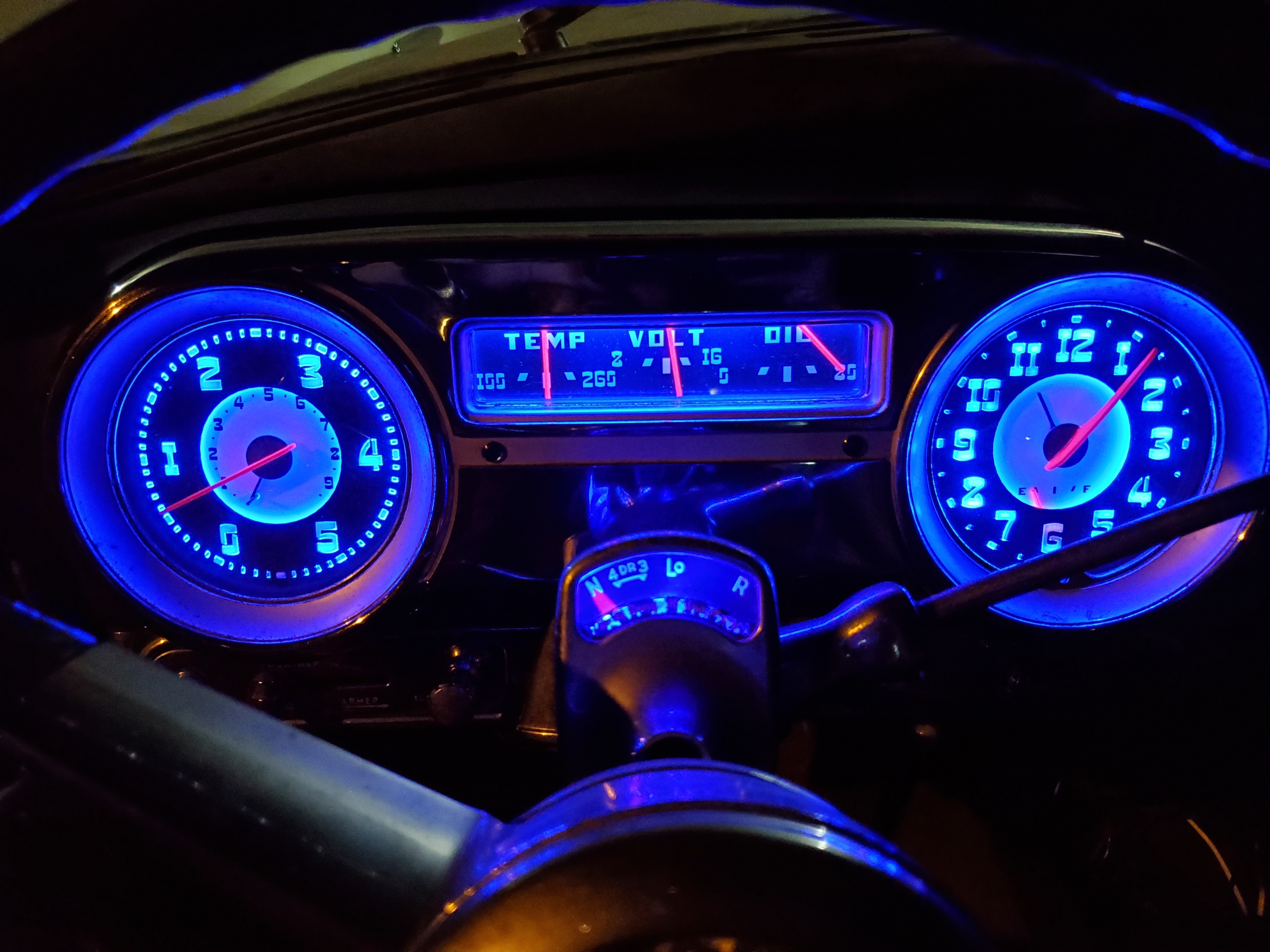

    Some updates: current engine layout, gauges and lights, and seats/safety belts...



    3024 x 4032 - 3M
    4032 x 3024 - 3M
    2268 x 4032 - 4M
    4032 x 3024 - 4M
  • PaulButlerPaulButler Posts: 838Administrator
    Wow, those gauges really stand out! It's looking really good , great work
  • GrimGreaserGrimGreaser Posts: 786Senior Contributor

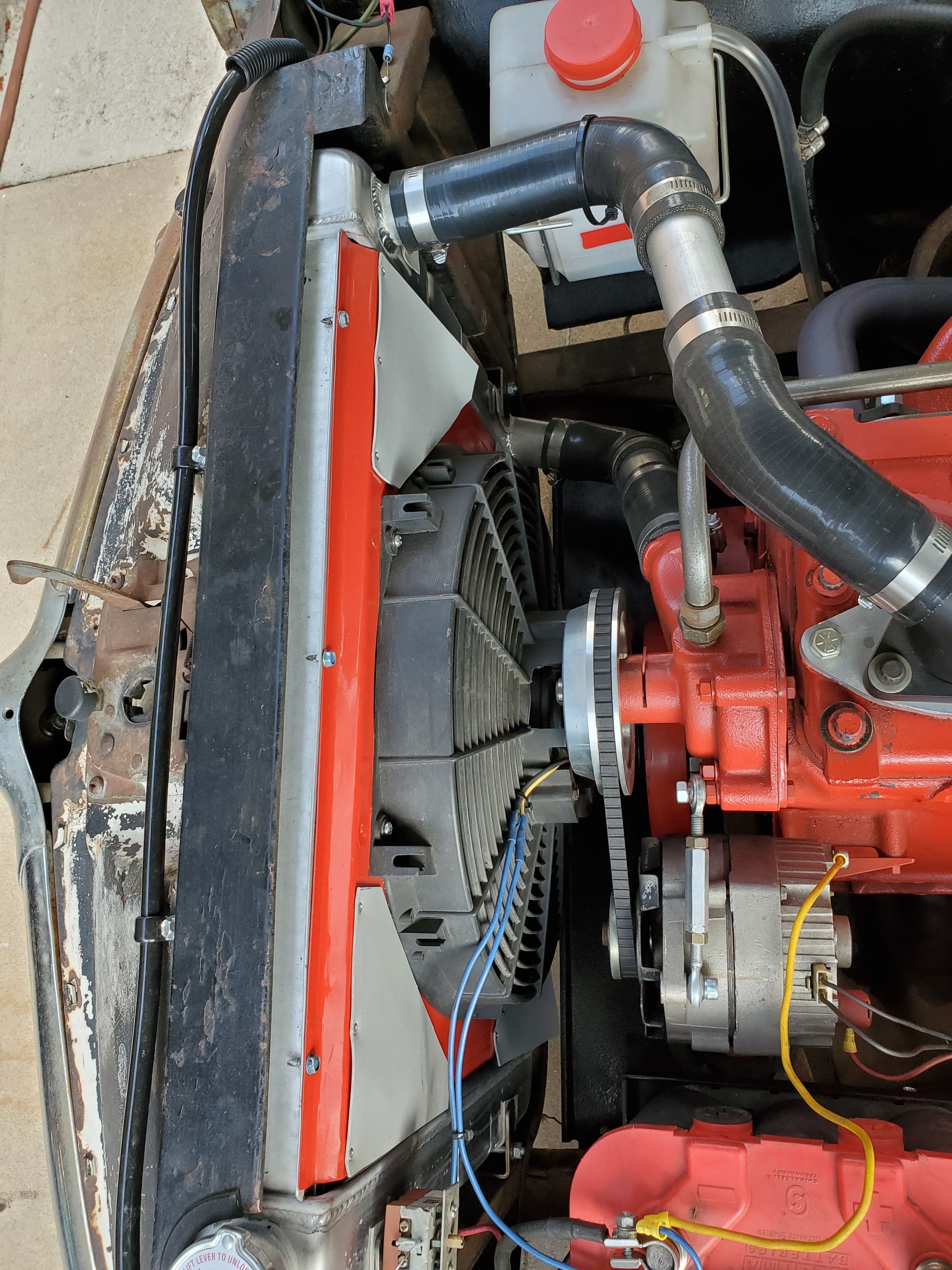

    Another shot of the engine:

    Speedway Motors aluminum dual-pass radiator and a custom made electric fan shroud.
    3024 x 4032 - 3M
  • KdancyKdancy Posts: 2,361Senior Contributor
    edited August 10
    Like the fan shroud. I need to build one for my custom 53 studebaker coupe.
    Very nice upholstery.
    Are all the guages now ready for sale?
    Also interesting seat belt arrangement for 3 pt belts, i need to look into that.
