No spark on a 54

scottyrodgersscottyrodgers Member
in HUDSON Posts: 15
Hi all new the 6-volt Indians reading the forums and have an issue I have a 1954 hornet and going by the manual I was getting no spark anywhere replace the battery terminals the solenoid was replaced before I got it I replace the ignition coil check the distributor cap and the firing order insured proper gap on all the plugs and on the distributor and I am getting spark going to the cap but not on any of the plugs needed to Hudson could use some help

Comments

  • iceblade10iceblade10 Member
    Posts: 298
    What kind of spark plug wires are you using?  If old, maybe invest in some nice new ones?

    http://www.wrphet.com/engine.html
    Stephen Repas
    1954 Hornet Coupe - Originally my Grandfather's
    Southeastern PA
  • Ric West INRic West IN Senior Contributor
    Posts: 351
    Maybe the carbon contact is missing from your dist. cap.  Or bad condenser or corroded
     or dirty points.   Another frequent culprit, the small braided wire between the advance plate and the ?  (senior moment)  See if the insulation is abraided /worn.
  • Jon BJon B Administrator
    Posts: 6,431
    I'm curious: was this car running before you replaced all these things?  Or have you never had it running?

    Are you sure that all the components are correct for 6-volts and for Hudson, and are positive ground?  Battery cable is thick 6-volt type, and battery is grounded to body and to engine?  Sorry, but these are just basic questions one should ask before delving deeper into the problem.

    If all of the above is checked out, one quick and easy thing is to change out the condenser (as Ric suggests) because there are an awful lot of those things that are bad when they are new!  You should keep a few spares with you anyway, so you're not wasting your money to buy some extras.
  • 29sptphaeton29sptphaeton Member
    Posts: 66
    Check the cap for a small crack from the center to the clips that hold it on. Check both inside and outside. The spark maybe going to ground on a clip.
  • scottyrodgersscottyrodgers Member
    Posts: 15
    Looks like the wires inside on the plate were original and frayed just got new points coming in tomorrow and gonna replace those and the wires and see if that helps, wasnt running when purchased but close. The wires were replaced before so not sure on those but  almost every wire and part aside from what i replaced are all original. Just want to awaken it for a few before the full restore. Im definitely gonna need all new wiring harness if anyone has a sugestion. Its a positive ground system. I also need a manual on this beast, it had an original service manual but it doesnt go into body or interior and i will need that.....newbie here so hopefully theres some resources here that can help
  • Jon BJon B Administrator
    Posts: 6,431
    H-E-T Club is a good start, http://www.hetclub.org/ .  you can connect with a lot of Hudson people at get-togethers across the country, "network" for parts, and get a nice magazine 6x a year.  The Club website has downloadable manuals (for those registered at the site).
  • 50C8DAN50C8DAN Senior Contributor
    edited September 22 Posts: 1,514
    29 is right.  Replace the dist cap.  Back in the day when I was in college I had a '66 Chevelle.  One night after a meeting I could not get it to fire and I had just driven it a couple of hours before.  My Dad towed it home.  We checked everything, including the cap with no apparent cracks.  However, my Dad finally said it had to be the cap and we replaced it and immediately the engine started right up.  After doing a very very close inspection of the cap there was a very fine hair line crack up near the center post that was the source of the problem.

  • scottyrodgersscottyrodgers Member
    Posts: 15

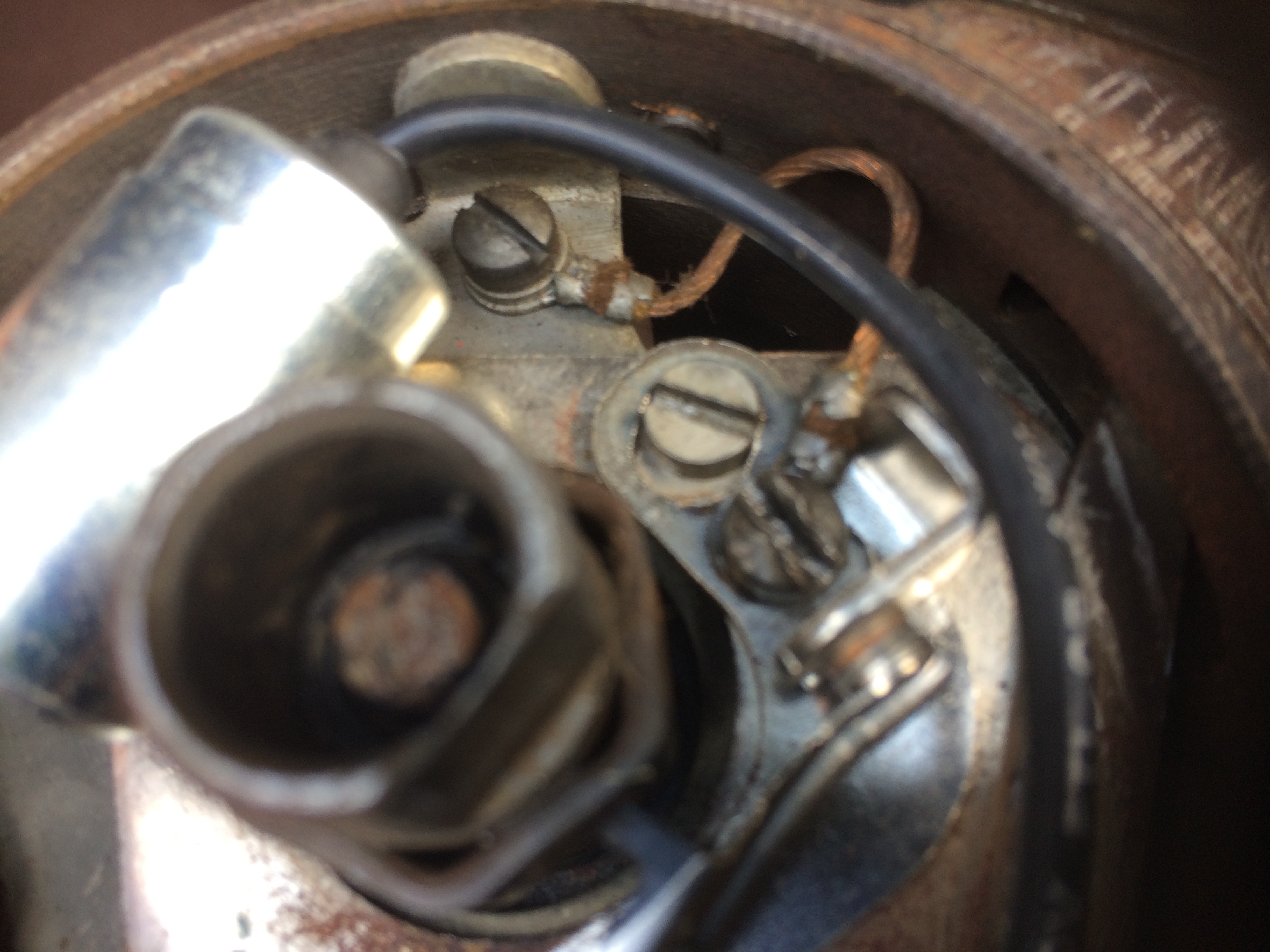

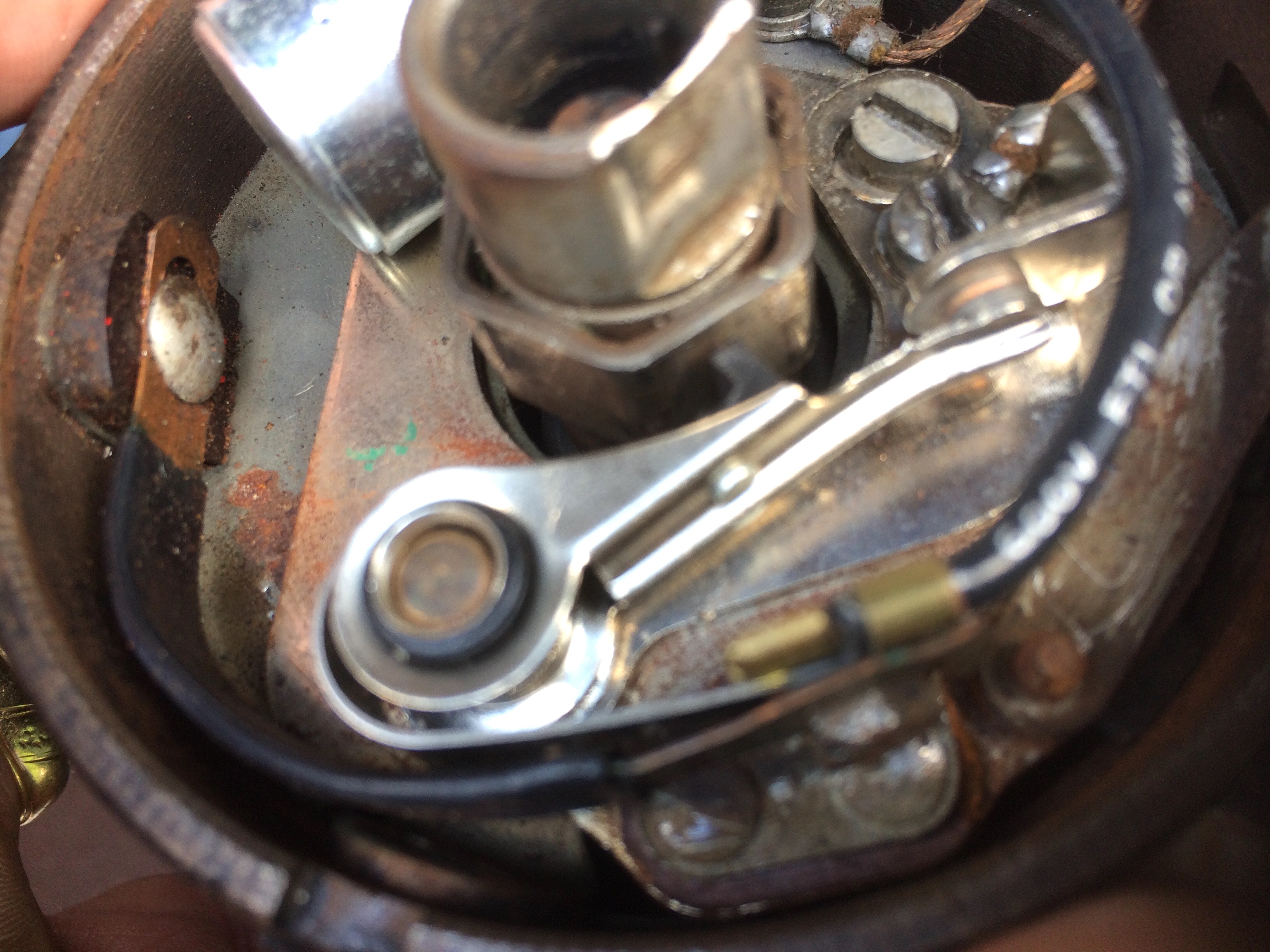

    Ok should have taken a picture but had to rebuild both wires they were shot and now cant figure out where the smaller one co. Ected to and the diagram sucks anyone have a pic of how its supposed to be?? Here is where im at so far
    3264 x 2448 - 2M
    3264 x 2448 - 2M
  • Oldfarmer1947gmailcomOldfarmer1947gmailcom Expert Adviser
    Posts: 1,314

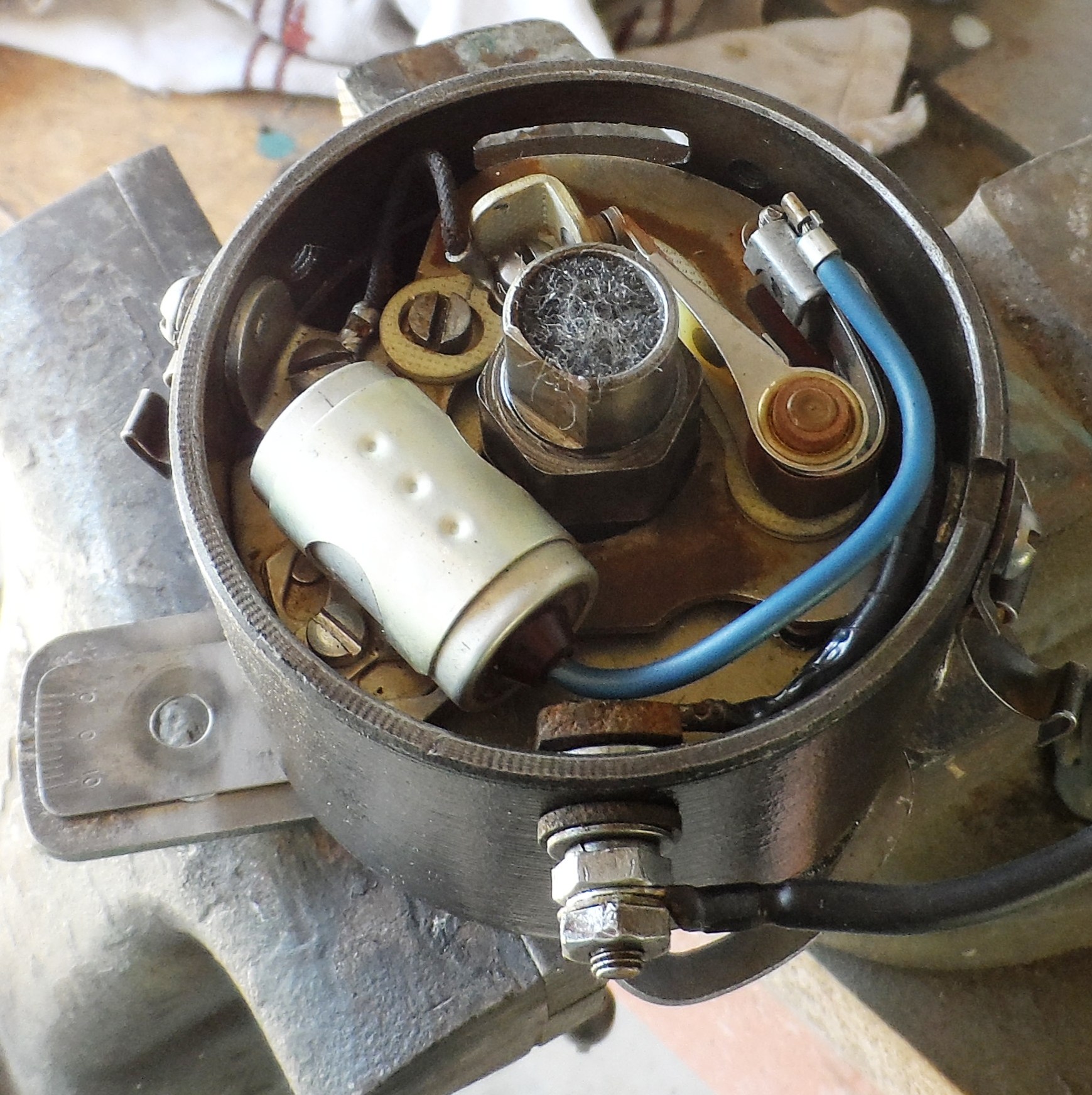

    Pictures usually are easier than words.  Expand picture size to see connections. image
    1739 x 1744 - 612K
  • scottyrodgersscottyrodgers Member
    Posts: 15
    Perfect thats where i hoped it went hewwww
  • scottyrodgersscottyrodgers Member
    Posts: 15
    Huh all that, new points condenser new cap new solenoid new  coil and now no spark from the coil
  • Oldfarmer1947gmailcomOldfarmer1947gmailcom Expert Adviser
    Posts: 1,314

    Power to the coil and from the coil to the distributor ... make sure fully insulated no shorts or grounding. The wire from the distributor cap tower to the coil tower ... pull it out and check it is good ... ie wire connections are solidly attached and that there is continuity from end to end.  Check coil by applying power to coil and grounding the opposite side... if the coil is good the ignition wire that normally goes to the distributor cap will spark to a good ground.


  • scottyrodgersscottyrodgers Member
    Posts: 15
    will do in the am the coil is new and was getting spark before changing the points and i just disconnected it from the distributor when putting in all the rest, the ignition is on but wont crank from the switch so i am using the built in push button on the solenoid to attempt to start , i know there are tons of bad wiring so a new harness is badly needed
  • onerare39onerare39 Expert Adviser, Moderator
    Posts: 912
    Scotty,
    It's frustrating but you will get there.  Be sure to install a new rotor also.  I had a Studebaker die on the road and after a week of changing out ignition parts I put in a new rotor and it fired right up.  I also had a rotor fail on my Hudson after driving it in a funeral procession.  When I went to leave the cemetery the car would not start.  Three of us worked on it for an hour, one guy had a spare rotor and once installed it fired right up.  In both instances the cars were running perfectly before they died.

    As far as wiring harnesses, take a look here.  I have used them for my Hudson and my Packard, excellent workmanship and very easy to install.

    http://www.ynzyesterdaysparts.com

    Hope this helps,

    John Forkner

    p.s., I'll send you a copy of the current issue of the White Triangle News, the award winning publication of the Hudson Essex Terraplane Club, it's "The" resource for all things Hudson related.  Send me your mailing address, HETForkner@aol.com (drop the HET)


    1280 x 960 - 197K
  • scottyrodgersscottyrodgers Member
    Posts: 15
    Pictures usually are easier than words.  Expand picture size to see connections. image
    Old farmer is the wire coming from the points connected under or on top of the i side insulator? Looks like it is under making it contact with the housing....i have mine on top connecting to the screw
  • Oldfarmer1947gmailcomOldfarmer1947gmailcom Expert Adviser
    Posts: 1,314

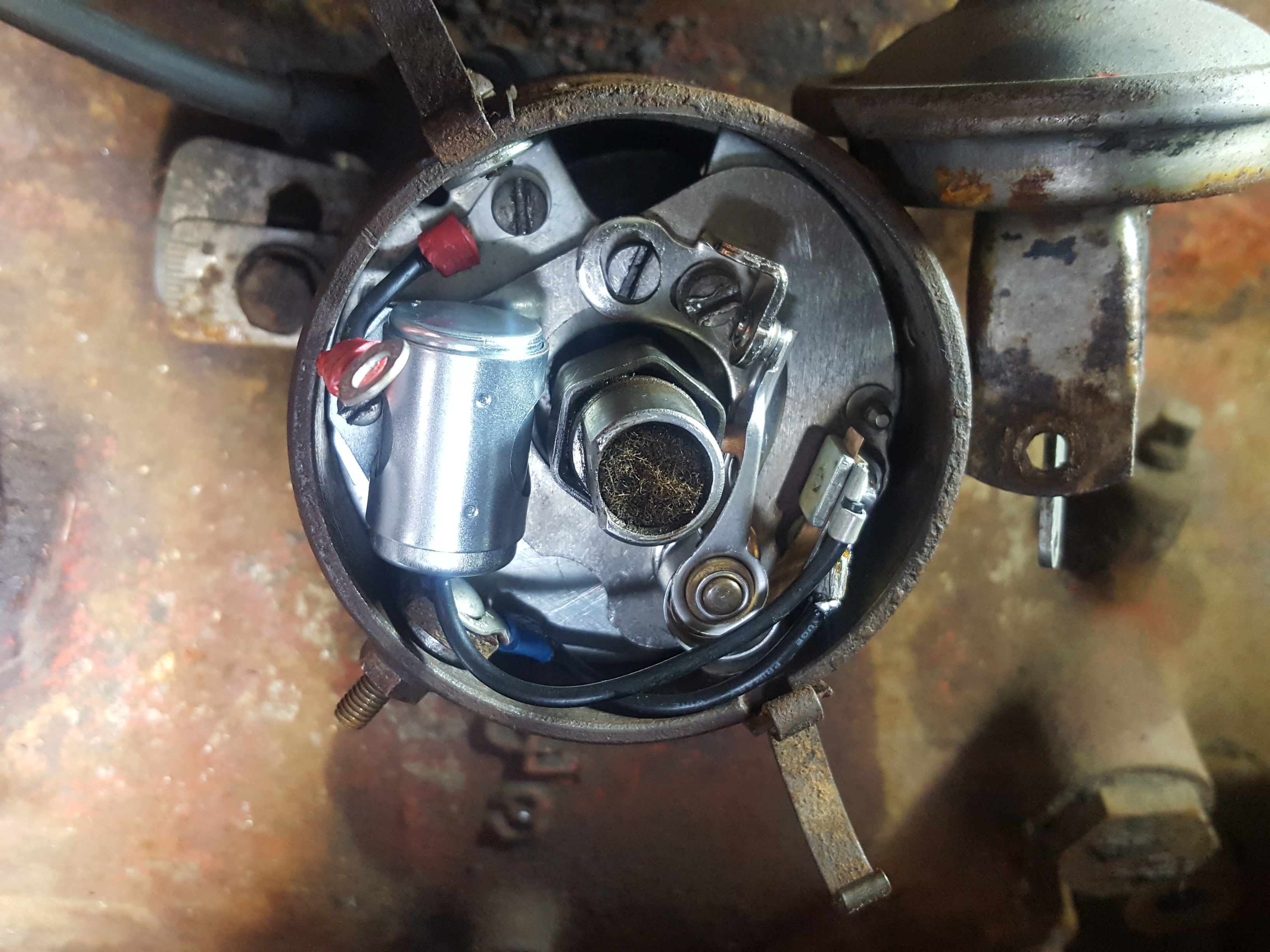

    Better pictures....imageimage
    3264 x 2448 - 2M
    3264 x 2448 - 2M
  • Geoff C., N.Z.Geoff C., N.Z. Senior Contributor
    Posts: 3,286
    Your picture does not show the vacuum advance unit.
    If you're stuck in a hole, stop digging.
  • scottyrodgersscottyrodgers Member
    Posts: 15
    ok so i abandoned the start....too many issues with the old wiring harness and figured if i did get it started and had a short somewhere then could risk a fire. So i ordered a new wiring harness which should be in thin week, once that is complete ill give her another shot....better safe than sorry
  • scottyrodgersscottyrodgers Member
    Posts: 15
    new harness came in and i'm in hell, well the front ant rear and interior lighting are done for the most part but the dash and ignition are confusing me to no end...........
  • onerare39onerare39 Expert Adviser, Moderator
    Posts: 912
    Scotty,

    What's the issue?  What harness manufacturer did you use?  Also, when you go to test the system, use a 6 volt lantern battery.  It provides just enough juice to check lights and energize solenoids, but won't cause smoke or fire.  You do know that your car is positive ground, right?

    John Forkner


  • 50C8DAN50C8DAN Senior Contributor
    Posts: 1,514
    If this is a real repro harness the color codes should be easy to follow.  If you bought a generic you are on your own to decide what goes where.
  • scottyrodgersscottyrodgers Member
    Posts: 15

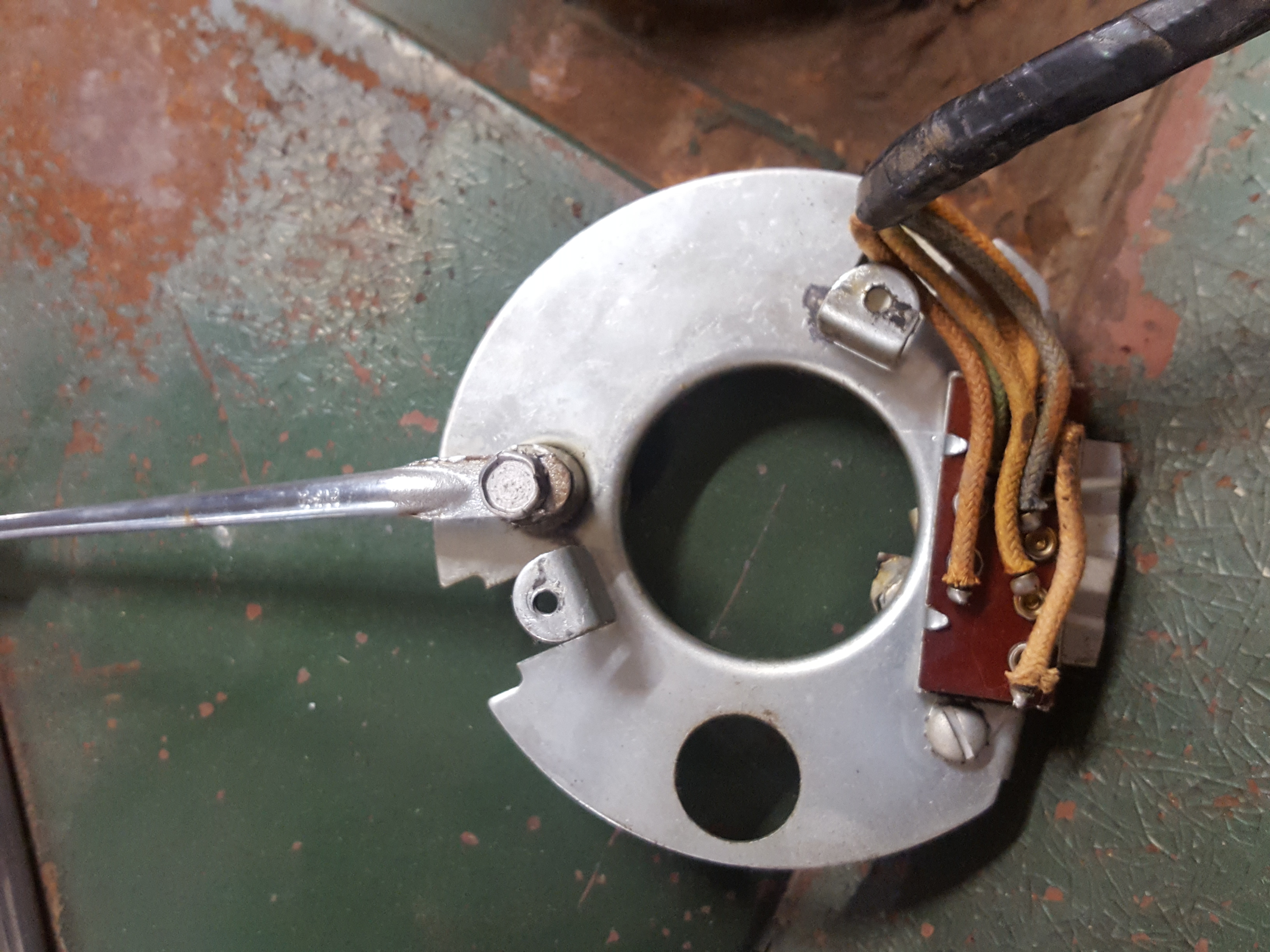

    Yes positive 6v ground it was the economy harness from speedway motors I think I just got daunted by the massive amount of wires everywhere but I've almost got it now everything except for the last little bits of dash lights and not putting in my dimmer control for the headlights until after the new floor pans get here biggest question is the turn signal and flashers diagram for the Hudson only indicates two wires but looking at the indicator and the turn signal switch housing that I pulled out I've got what's attached in this picture not really sure which one does what
    3264 x 2448 - 2M
  • scottyrodgersscottyrodgers Member
    Posts: 15
    Wiring harness i have
    3264 x 2448 - 1M
