OverDrive Trans help please

Val

I have what I believe to be a 1950 O/D trans in my 39. Not sure that it is kicking in now. What re some things to check?

Jon B

Wiring, and terminals (make sure nothing's broken off the transmission).

Do you mean that, with the knob in and overdrive "enabled", it doesn't click into 4th gear when you lift your foot off the gas?

If so, the problem could be electrical (governor switch?), or it might be in the mechanical cable that goes from the knob down to the lever on the side of the OD.  When knob pushed in all the way, is it moving the lever on the side of the OD all the way back to its limit?  Try unbolting the cable from the clamp at the arm.  Now, can you move the arm back further?  If so, then the cable must be re-positioned and the arm clamp re-tightened.  If NOT, then....that wasn't the problem, LOL!

Val

Thanks Jon I will check all that and send you a PM on the club forum But I thought the knob had to be pulled out. HHMM maybe that is my problem??? LOL

Jon B

Check your instruction book.  I have the "first gen" of Hudson OD and the knob is OUT for regular 3-speed direct drive, and IN for overdrive.  The later OD's might be the opposite, I dunno.  Check it out!

Geoff

Knob has to be  all the way in for o/d to work.  Check that the lever on side of o/d is right back when  the knob is all the way in.   Otherwise, check the  governor switch, that it provides ground circuit to the relay.

Val

Thank you Geoff, I really appreciate you guys help in this as I am new to all this and it is a mod that was done. I'll update when I get the chance to check all this. Hopefully today after work I can get to it.

Val

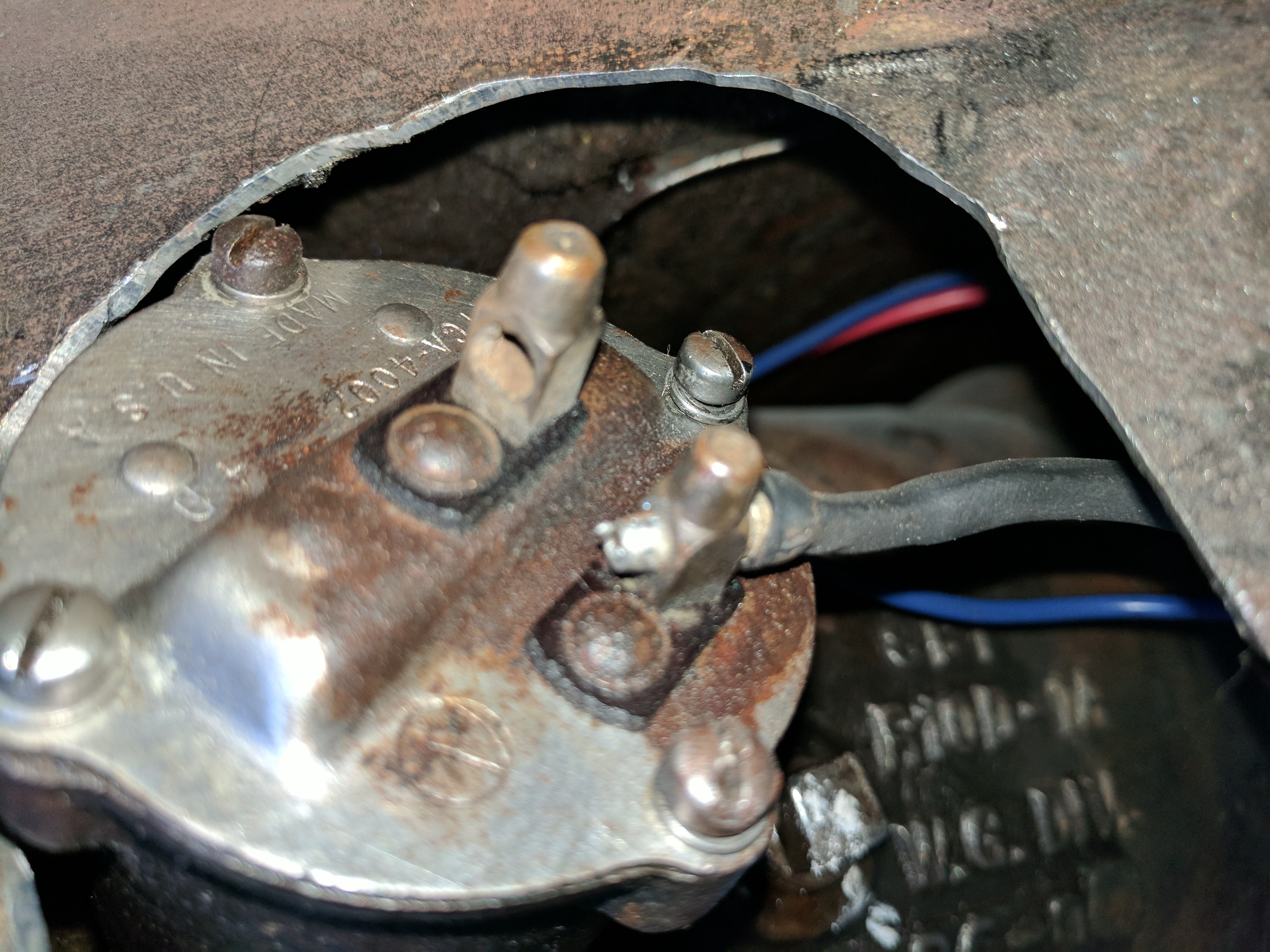

Ok Guys I have checked so far the travel of the lever at the trans when the knob is in the fully extend and pushed in fully positions. It does travel to the full distance. Here is the Gov. (centrifugal Switch?) where the wire comes in should I be able to move that by hand?

Val

Here is the picture for any reference

Jon B

Move WHAT by hand?  Are you saying that the terminal on the switch is loose?  Or that the wire is not secured to the terminal?

Val

the wire is secured but I can move the terminal

Jon B

The terminal would be "suspect", then.  can you get the switch out to work on it? Perhaps if you remove the four screws around the perimeter of the cover, the cover can be removed and this will reveal what's going on inside the switch.

I'm sure there are electrical tests you can put on this switch to see if it works.  Depending on how it's wired, when it reaches a certain speed it should either a) open or b) close a circuit.  So if there is a safe way to jack up the rear wheels and run the car at about 30 mph, and put a continuity tester across the terminals, you should notice something happening at 25 to 35 mph.  If the switch is working.

Here's a guy on the internet that talks about testing the switch.  He's talking about Ford overdrives but they're all Borg Warner!  https://www.ctci.org/gilsgarage/OverdriveGovenorTest.php

If you discover that your switch is toast and you need another one, there are several avenues to take.  First, send out e-mails to some of the Hudson vendors who advertise in the WTN, asking if they have any (send a photo and list any part number markings on the case, to help them identify the right one).  They'll be used switches but will probably work.

Ebay is another avenue. Here's a "Hudson" NOS switch but the guy doesn't know which year it fits:  http://www.ebay.com/itm/Autolite-TGA4002-HUDSON-Overdrive-Solenoid/311925900588?epid=1351329984&hash=item48a03b852c%3Ag%3ASfYAAOSwsQVZeqAV://
It looks like yours.  Here is a Nash switch, also NOS and cheaper:  http://www.ebay.com/itm/NOS-1947-Nash-Transmission-Governor-OEM/191822723452?hash=item2ca986797c%3Ag%3Abg8AAMXQySpRWsmF
You'll just have to find out if it interchanges with your Hudson.

In the end, your problem may not lie with the governor switch at all.  You might just have a loose wire in the circuit somewhere.  Check your shop manual, it might have a troubleshooting section on the overdrive.

Val

Thanks Jon for all the info, I just had installed (Trans) at Dr Doug's and it worked fine on the 5 hour drive home. So I would think it should still work. I will check though with the screws removed to see if something is loose.

Val

Also not sure mine is a Borg warner

ernie28

Check that the governor has not filled with oil. If so, clean out and reassemble to see of it is all go again.

Val

Ernie28 do I do that by just removing the 4 screws?

dave11

You may want to ensure that you have a source of current going to the governor switch. The source is supplied from the generator , not from the battery, so if the generator stops charging for any reason the OD will not work. You did say yours is a 39,... I believe. On the 52 stepdown such as I have there is a charge light on the instrument panel, when that light comes on the OD will not engage

Val

Yes its a 39 and does have the charge light on the dash

Jon B

Val, why does one of the two terminals on the governor switch seem to have no wire attached to it?

ernie28

Val, I disconnected the terminals and remove the whole unit to empty the oil and clean up but yes the back cover needs to be removed.

lostmind

Why not call the man that installed it and get his opinion?
It was working when you left there.
Maybe there is a fuse in the system he could direct you to.

onerare39

Val,

I agree with lostmind. Stop and call Doug before you do anything.

John Forkner

Val

Jon B, I don't know would have to ask Dr Doug, ernie28 Thanks for the info. Lostmind and John Forkner  Have spoken with Doug and he gave me some advice and an easy test to do. Thanks to all who have given advice and help in this matter. I greatly appreciate it.

Val

Got the Overdrive working again. The Good Doctor was a tremendous help in he sent me both a new solenoid and new relay. The relay did the trick.
