Front suspension parts wanted for 1948 Super Six

Doctorvaux
Doctorvaux Member
edited July 2017 in HUDSON

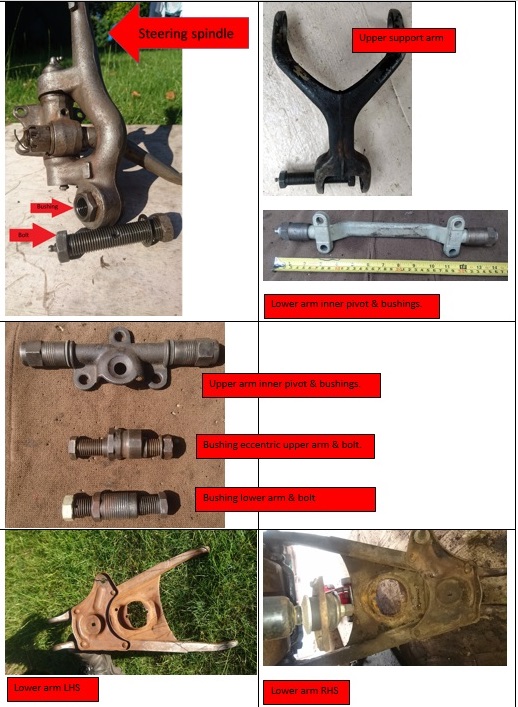

I have recently discovered previous accident damage to the front driver side (LHS) of my 1948 super six which has resulted in many of the components being damaged or worn and in need of replacement. The RHS lower arm is also badly cracked and needs replacing. I have made a list of what I need and I will try to post pictures.

I will be attending the international meeting in San Diego, so if anyone is attending the swap meet and has any or all of these parts I would be grateful if you could bring them along. I live in the UK, so this will be a good opportunity for me to find the parts, as nothing is available at home!

Thank you for your help!

New old stock items:

1x Lower arm inner pivot. Part number 300326.
2x bushings for inner pivot.  Part number 159720
1x upper arm inner pivot.
2x bushings upper arm for pivot.  Part number159739
1 x bushing - lower arm to support pivot bolt. Part no. 159725
1 x bolt -spindle arm to lower support. Part no. 300983
1x bushing eccentric upper arm. Part no. 307630
1x bolt support to arm (fits into eccentric bushing).Part no. 300983

New old stock preferred, but good used items without wear or damage would be OK:

1x Driver side (LH) upper support arm (wishbone) part no: 300981
1x Driver side (LH)  lower support arm (wishbone) part no: 300330
1x LH support assy.  steering spindle part no:166274
1x Passenger side (RH) lower support arm (wishbone) part no: 300329
