6 wire Turn Signals

48Sed
48Sed Senior Contributor
Does anyone have a wiring diagram or color code for the 6 wire signal switch?
The colors are blue,orange,red,brown,yellow ,green.
Thanks

Comments

  • Jon B
    Jon B Administrator
    I tried e-mailing you a diagram but the e-mail address at your profile page, bounced!  (the one that starts with "psb").  PM me your correct address and I'll be glad to oblige.
  • Jon:

    Would you mind sharing that diagram. My email is jlombard@jtlombard.com.


    thanks

    J Lombard

  • Glowplug
    Glowplug Expert Adviser
    edited April 2015
    This link takes you to a wiring diagram booklet which contains the diagram requested

    http://hudsonterraplane.com/tech/1946/1946-1954_wiring_diagrams.pdf
  • DavidC
    DavidC Senior Contributor

    52 Hudson Hornet Turn Signal Wire Diagram

    Look up the above discussion- I posted a wiring diagram that you can read

  • PaulButler
    PaulButler Administrator
    And just to put a plug in for the club library :) ; the document oldfarmer mentioned is also here:

  • 48Sed
    48Sed Senior Contributor
    Paul
    Half the pages are blank when I check them or missing  most of the diagram?
  • PaulButler
    PaulButler Administrator
    That doesn't look good does it! Leave that one with me and I'll check it out
  • DavidC
    DavidC Senior Contributor

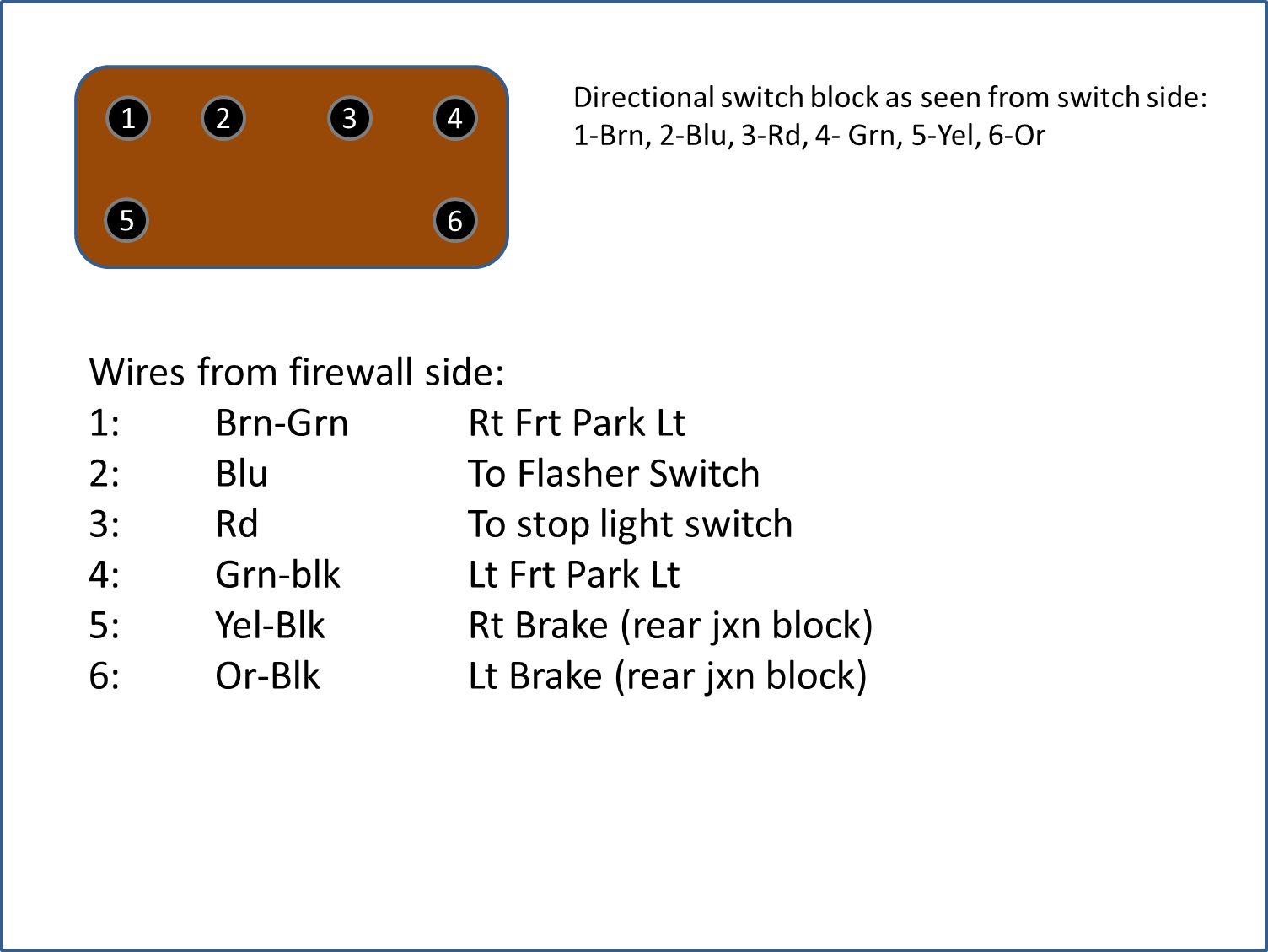

    Attached is the diagram I made
  • Kdancy
    Kdancy Senior Contributor
     Paul, I have a couple of questions.
    When you click on and bring up the Hudson Library link, what is included in the "buy now" ?
    I pulled up the pdf pages and I see the diagrams with wire color. Is there any info on each wire size?
    Thanks!!
  • PaulButler
    PaulButler Administrator

    Hi Kerry,

    The "Buy Now" option is something that we have recently included and allows you the opportunity to get a document professionally printed by our Club Store duo of Jeremy & Theresa and then mailed off to you.

    So if you click on it the document you are looking at will be added to your shopping cart and you'll be able to pay for a paper copy of it.

    I believe that moving forward this will be offered as a real-time option at the various meets throughout the year or at least at the meets that Jeremy & Theresa are able to attend.

    There will be a few more changes coming along in the not too distant future with regards to the Club Store. We have been beavering away in the test site testing a new release of software to drive it and that will be made available as soon as we are happy that it passes all the tests.

  • Kdancy
    Kdancy Senior Contributor
    That is good, glad these are available.
    Now, any way we can get the wire size info for duplication?
  • Ric West IN
    Ric West IN Senior Contributor
    Kerry,  The wire size/gauge is given on the wiring diagrams in your owner manuals, at least the 1948-54
    has this info.

    "Ric"
  • 48Sed
    48Sed Senior Contributor
    Paul
    Any luck with the blank pages?
  • PaulButler
    PaulButler Administrator
    It's on the list to be looked at over this weekend :)
  • 48Sed
    48Sed Senior Contributor
    Thanks for checking into it.
  • PaulButler
    PaulButler Administrator

    I have re-uploaded the manual and there is now only one blank page that I see which is Page 2. I did notice when looking on the hudsonterraplane.com that the manual was sometimes a little slow to load. This does happen sometimes with embedded Adobe documents and you think that things are missing. They aren't ; it's just taking a while longer to load but isn't telling you that!

    The clarity of some of the diagrams are a little blurry so I'll have a word with the Lord of the Documents Alex to see what we might be able to do

  • Kdancy
    Kdancy Senior Contributor
    From Ken Cates- he looked up the info, found some older posts.
    I checked the source of the diagrams and the original
    does not have wire gauge listing either. Some sleuthing of past forum posts

    Uncle Josh Senior Contributor

    October 2006 The stepdown diagram has all the wire sizes.
    Generally

    #1, Battery cables

    #10, Starter sol to reg B term, CB and horn relay feed

    #12, Ignition switch feed, gen to regulator A term, horn
    and light sw feed, dimmer sw and headlamp feed

    #14, ignition switch to coil, coil to dist., horn button
    wire, tail, license feeds etc

    #16, signal wires, quarter, courtesy lamps etc.

    #18, indicator lamps


  • Ric West IN
    Ric West IN Senior Contributor
    Sorry my info was not helpful . Every Hudson owner manual I own from 1948-1954 has the wire size of each circuit listed .  Maybe the diagram/lube chart is missing from yours.

    "Ric"
This discussion has been closed.
