Twin H throttle linkage

SuperDave

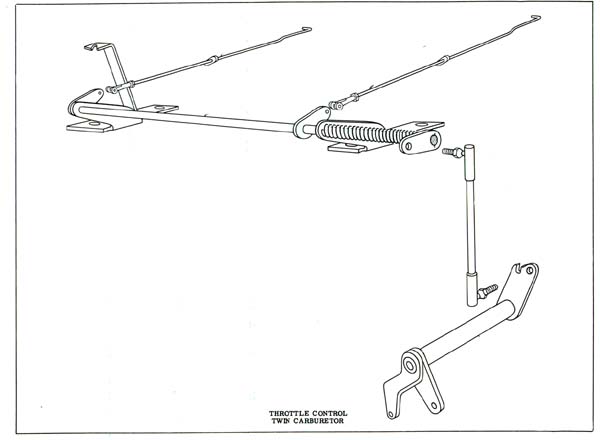

 I am working on conversion to Twin H.I need someone to post a picture of the bell crank/throttle linkage on a Hydra-Matic stepdown. The setup I have is for the 2BBL carb and it works fine, but the picture in the mechanical procedure manual has a different bell crank and the picture is such poor resolution, I can't really see what it is supposed to look like. I know I am missing the Twin H linkage rod that connects to the bell crank. I can make one if I had the correct bell crank to see what length it has to be. If someone has the correct bell crank for a LWB stepdown, my problem would be solved!  LOL

tbeilke

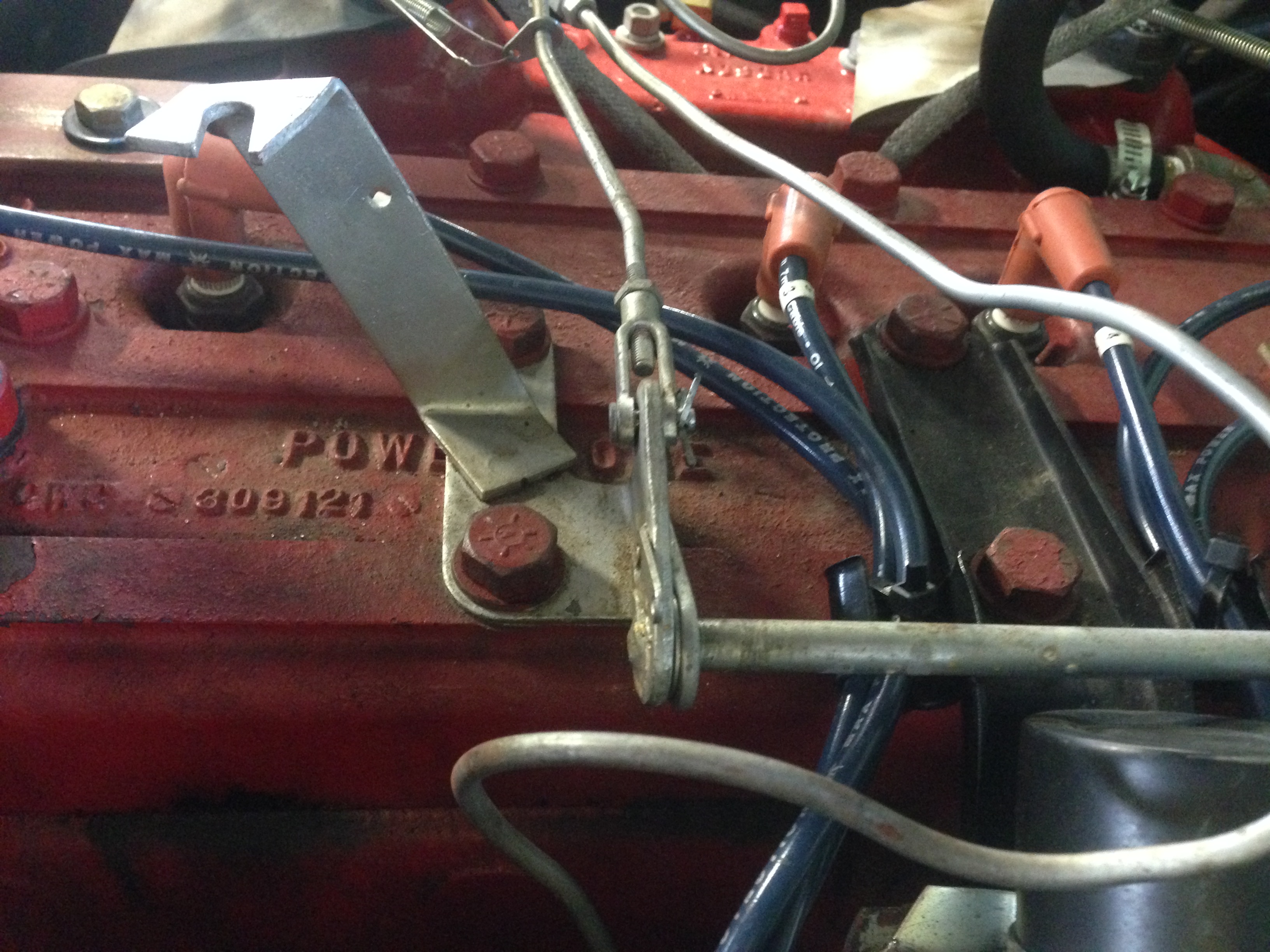

Would these pictures help?

Tom

SuperDave

PERFECT  thank You! I think I can fabricate the bell crank now that I know what it looks like. I have the rod (with the spring) but the bottom end is broken. Again, I think I can fab a new end on it. Since I am a pack rat and seldom throw anything away!. Thanks again guys!+

Glowplug

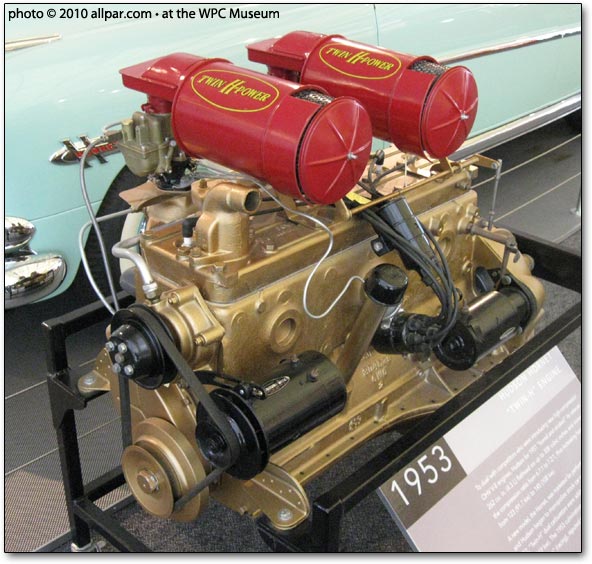

These are pictures of the linkage you seek

SuperDave

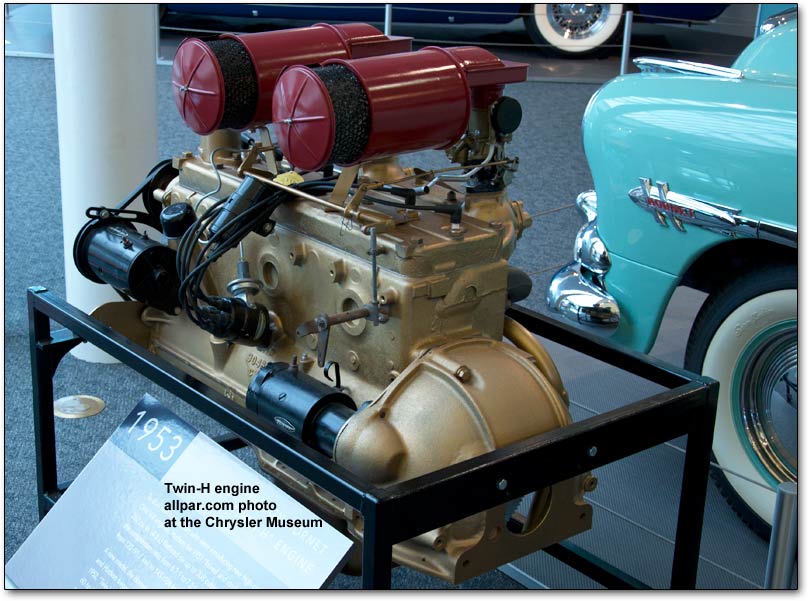

 Those pictures are from  Chrysler museum.. Looks familiar. The picture on the right shows the correct one for HD.

Thanks!! Note that there is a standard shift bell housing on the engine.

SuperDave

Thanks ken. I didn't look close enough at the bell housing. Also I am sure there are differences in the swb and lwb cars due o  the firewall differences(?)
